Construction staking is the step that turns a plan set into something a crew can actually build from. Without it, crews are left guessing where a wall, a curb or a pipe goes. In Savannah, GA, lots often carry old easements and tight setbacks. A guess there can cost real money. This piece walks through what construction staking does on a job site. It also covers why skipping it rarely pays off.

Every project runs on the same basic exchange. An engineer or architect hands over a set of plans. A surveyor turns those plans into marks a crew can build from. Skip that exchange, and a well designed project can drift off course. That drift can start before the first wall goes up.

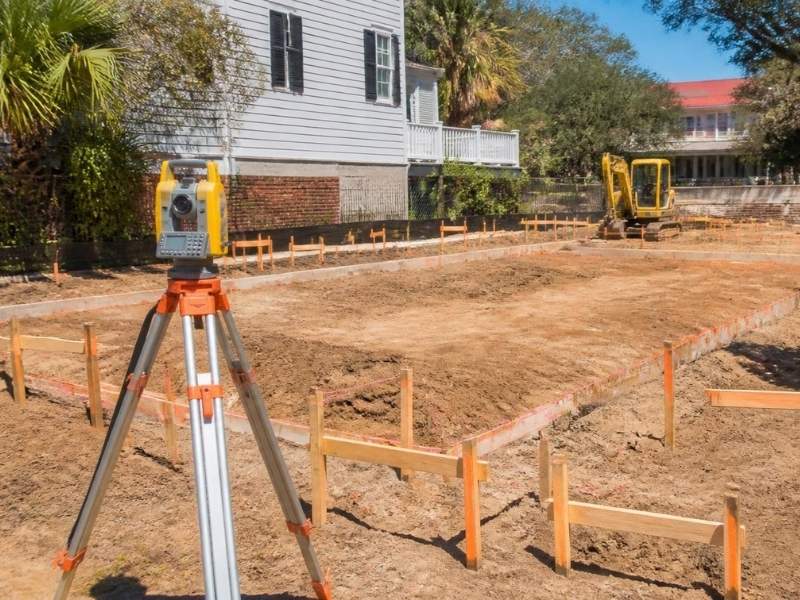

Construction Staking Transfers the Design From Plans to the Ground

A set of approved plans has coordinates, dimensions and control points. Those numbers mean nothing to a crew standing on raw dirt. A surveyor takes that data. Then they mark it out in the field, point by point.

The marks themselves are simple. Stakes, hubs, nails or paint, depending on the surface and the project. A wood stake might mark a building corner. A nail in pavement might mark a utility line. Paint might mark a curb edge for the next day’s pour.

None of this is fancy. It’s a physical reference. Crews can see it and measure from it. They don’t have to picture a drawing while standing in a field. That reference keeps a project on the design the architect and engineer approved.

Staking also ties the plan back to the actual property. A surveyor checks the design against the recorded boundary before setting a single point. That step matters most on tight lots. A building line there often sits close to a setback or an easement. Catching a conflict early, before any stake goes in, saves a redesign later.

Building Corners and Foundation Lines Need Precise Field Placement

A small layout error early on doesn’t stay small. Move a corner two inches. That error carries into the walls. It carries into the columns too, and every phase built on top of them. By the time it shows up, it’s often buried under concrete.

Staking sets the building corners a crew needs before anyone digs. It sets the offsets and centerlines too. Offsets matter here. Crews often need a point a few feet off the actual corner. The corner itself gets covered once forms go in.

Get this first placement right, and the rest of the sequence follows. Get it wrong, and every trade that builds on it inherits the mistake.

Foundation crews rely on these points the most. A footing poured a few inches off can shift where the walls sit above it. That shift can carry through framing, siding and trim. Fixing it after the concrete cures usually means demolition, not adjustment. A short staking visit before the pour is far cheaper than that outcome.

Vertical Control Helps Crews Build at the Correct Elevations

Staking isn’t only about where a building sits. It’s also about how high or low each part sits. Horizontal position without elevation is only half the picture.

Surveyors set benchmarks and elevation points. Those points guide excavation depth. They guide finished floor height, foundation footings and curb grades too. A crew digging a foundation needs the exact depth, not just the outline. A paving crew needs that same certainty, so a curb drains water the right way.

Multiple crews often work the same site over weeks or months. Concrete crews, utility crews, paving crews. If they aren’t building from the same elevation references, the pieces won’t line up. That shows up fast once it’s time to connect them.

Drainage depends heavily on this vertical accuracy. A parking lot graded even a small amount off plan can pool water instead of shedding it. A foundation set too low can sit closer to groundwater than the design intended. Georgia’s heavy rain seasons make this kind of error show up fast. Sometimes it shows up within the first storm after the work is done.

Re-Staking and Layout Checks Keep Later Construction Phases Coordinated

Stakes don’t survive a construction site untouched. Equipment runs them over. Backfill buries them. Weather knocks them loose. That’s normal, not a failure.

Surveyors often return more than once on a single project. Foundation work might need a fresh set of stakes. So might utility trenching, paving or structural framing. Each phase can call for its own layout check.

These repeat visits aren’t wasted effort. They catch small drifts early. A wall off by a few inches. A utility line that misses its path. Catching that early costs far less than catching it after the concrete sets.

Larger projects often build a re-staking schedule right into the timeline. A surveyor might return after excavation, again before the foundation pour and once more before final paving. Spacing the visits this way helps each phase start from confirmed points. Crews aren’t working off leftover marks from weeks earlier.

Accurate Staking Helps Reduce Costly Field Corrections

A misplaced foundation is not a quick fix. Neither is a utility line in the wrong spot. Neither is pavement poured outside the planned edge. These mistakes mean tearing out finished work. Then starting over, on the clock and on the budget.

Reliable staking gives a contractor a clear, trusted reference. That happens before any material goes in the ground. It removes the guesswork behind these errors.

Bringing a surveyor in early surfaces layout questions first. Crews and materials aren’t committed yet. A conflict between a planned wall and an easement is cheap to fix on paper. It’s not cheap once the wall is standing.

The cost gap between a staking visit and a field correction is rarely close. A staking visit is measured in hours. A torn out foundation is measured in days or weeks. Add in new materials and labor to redo the work. Delays like that also push back every trade scheduled behind the correction.

A structure built outside its approved footprint can also fail a final inspection. That forces a contractor to fix the work before the project can close out. Accurate staking at the start keeps a project moving toward approval instead of stalling on it.
